Amalgam Lamps

Close-up of a clear glass or plastic tube with a white cap and multiple small holes at the tip, possibly a pipette or spray nozzle.

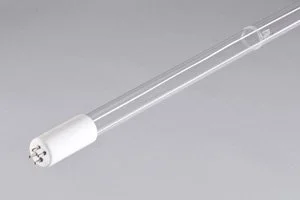

Long transparent glass tube with a metal attachment at one end, likely a UV or fluorescent light bulb.

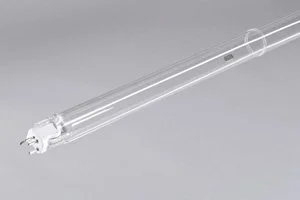

Close-up of a transparent UV-C germicidal lamp with a white connector at the end.

Because these amalgam lamps maintain a stable ultraviolet output at higher temperatures, they can be powered at higher wattages, generating more UVC.

An amalgam lamp is a special type of ultraviolet germicidal lamp that allows for higher UVC output and a larger temperature range in which the lamp remains operational through a technology that regulates the mercury vapor pressure in the lamp. Unlike standard lamps the mercury is not left free within the lamp, but is fixed to gold amalgam spots along the axis of the quartz tube.

Optimal mercury vapor pressure is maintained within an amalgam lamp by this amalgam spot which absorbs and releases mercury in the lamp as the temperature of the lamp fluctuates. Since the mercury vapor pressure remains constant, the ultraviolet output also remains constant, this way an amalgam lamp is unaffected by changing ambient air or water temperatures and its ultraviolet output remains stable over a large temperature range.

Common Amalgam Lamp Types:

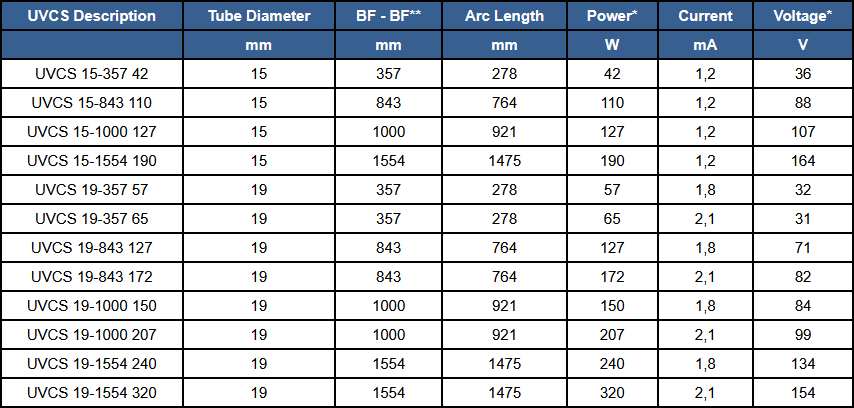

A technical data table displaying specifications of UVCS models, including tube diameter, BF-BF length, arc length, power, current, and voltage.

**Base face to base face measurement does not include pin length.
*Measured under laboratory conditions.
